Trenton THP high profile evaporators
THP is Trenton Refrigeration's high profile unit cooler line, the largest of its walk-in evaporators. Seven application classes run from high temperature (25 F and up, 7 FPI) through medium and low temperature to three CO2 classes, with six defrost types and 208-230 V and 460 V in single and three phase. Every model carries 1 hp two-speed EC fan motors with SmartSpeed technology.
Search THP models

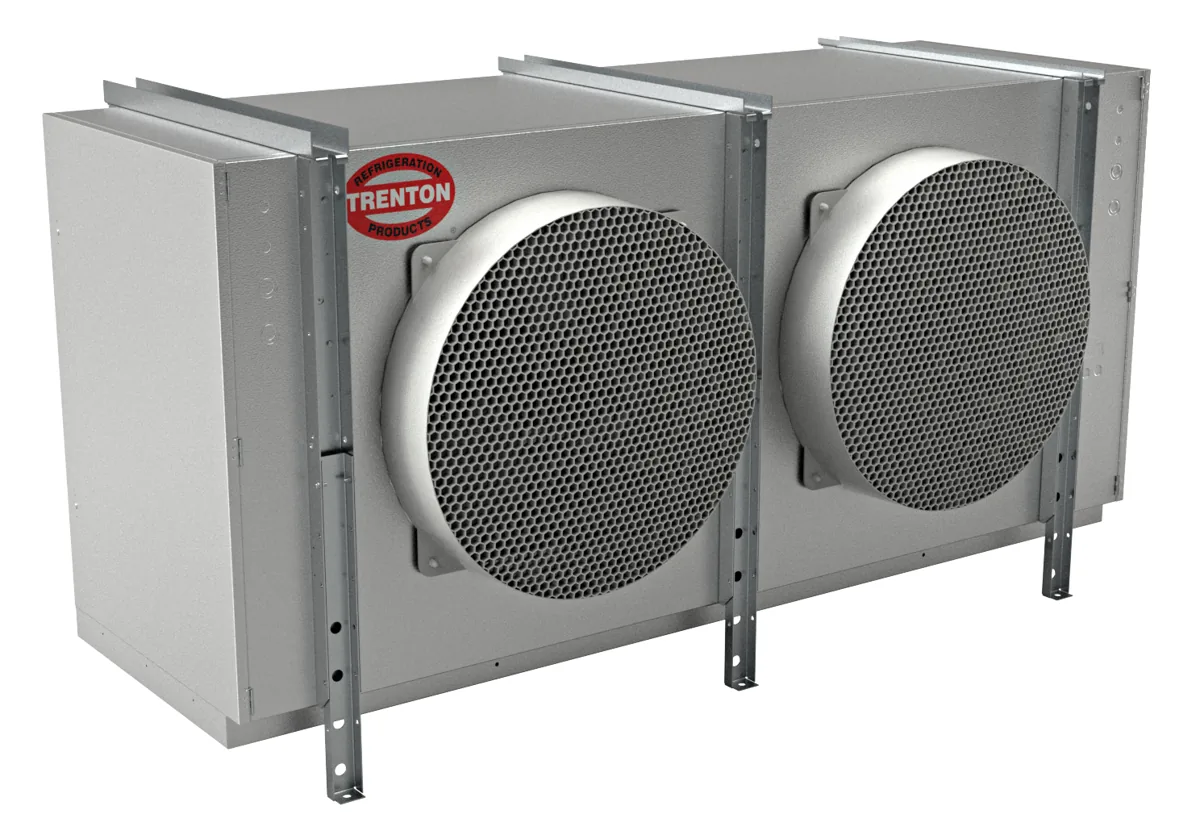

Image: Trenton Refrigeration
Nomenclature
Family
High profile evaporator
Nominal capacity x 1000
35 to 263 MBH (x 1000 BTU/h)
Temperature class
- HHigh temp (25°F +), 7FPI
- MMedium temp (10°F - 35°F), 6 FPI
- LLow temp (-40°F - 0°F), 6 FPI
- VLow temp (-40°F - 0°F), 4 FPI
Generation
- EA2L and A1 AWEF†
Voltage
- S2208-230/1/60
- S4460/1/60
- T3208-230/3/60
- T4460/3/60
Defrost
- AAir defrost
- EElectric defrost
- T3 pipe hot gas w/ electric heater pan
- H3 pipe hot gas w/ hot gas loop pan
- GReverse cycle w/ electric heater pan
- RReverse cycle w/ hot gas loop pan
† marks an option the other bulletin lists differently or not at all. * marks one this bulletin prints in its tables but leaves out of its legend.
The number after THP is the nominal capacity in thousands of BTU/h. Unlike the other Trenton lines, it carries no fan-count digit.
Documentation history (2025 to 2026)
Generations D and E
The older bulletin (October 2025) is titled generation D and E and keys its tables D. It defines D as A1 refrigerant AWEF compliant and E as A2L refrigerant AWEF compliant, and carries the CO2 classes with coils certified for 650 psi. The generation E bulletin (August 2026) defines E as A2L and A1 AWEF, restricts air defrost to the high temperature class, adds an A2L refrigerant detection system and a factory-installed distributor nozzle, and lists no CO2 class.
THP models
571 documented configurations, 35 to 263 MBH (x 1000 BTU/h).
Search THP modelsBy capacity
Rated at 10 F TD on R-448A, the maker's leading condition.
By temperature class
